Understanding Marine Day Shapes: The Language of the Sea

When navigating the open waters, communication is key.  Not just through radios or flags, but also through a unique visual language known as Marine Day Shapes. These geometric symbols, hoisted on vessels during daylight hours.  They convey vital information about a ship’s status, helping mariners avoid collisions and navigate safely.

What Are Marine Day Shapes?

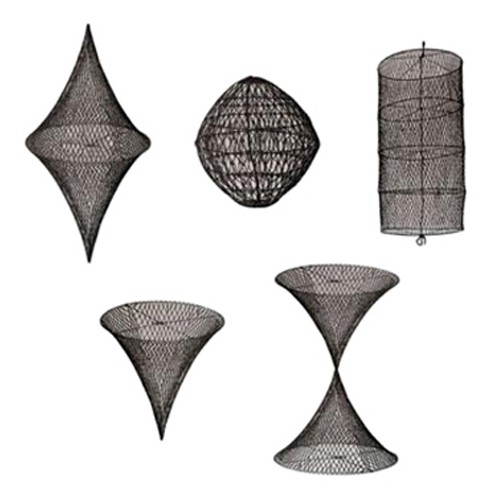

Marine Day Shapes are black geometric symbols.  Typically, balls, cones, cylinders, and diamonds. They are displayed on ships to indicate their operational status. These shapes are required under the International Regulations for Preventing Collisions at Sea (COLREGs) and are used during daylight hours.  They complement navigation lights used at night.

Common Marine Day Shapes and Their Meanings

Each shape or combination of shapes has a specific meaning, allowing vessels to communicate conditions such as:

Day Shape	Configuration	Meaning
⚫	One black ball	Vessel at anchor
⚫⚫	Two black balls vertically	Vessel not under command
🔻	One black cone (apex down)	Sailing vessel under power
🔺🔻	Two cones apex-to-apex	Vessel engaged in trawling
◼️	One black cylinder	Vessel constrained by draft
⚫🔷⚫	Ball-Diamond-Ball	Vessel restricted in ability to maneuver
⚫⚫⚫	Three black balls vertically	Vessel aground

Why Are Day Shapes Important?

Day shapes are crucial for collision avoidance and situational awareness. In busy waterways or during complex operations like dredging or towing, these symbols provide a quick, universally understood way to assess a vessel’s status.

For example, if you see a ship displaying a ball-diamond-ball, you know it’s restricted in its ability to maneuver—perhaps due to underwater operations—and you should give it a wide berth.

Display Guidelines

Shapes must be black and of a minimum size (typically 0.6 meters in diameter for balls).  They should be displayed in a vertical line where they are most visible.  Only required during daylight hours and in clear visibility.

Final Thoughts

Marine Day Shapes are a fascinating and essential part of maritime communication. They represent a time-tested system that, even in the age of GPS and radar, remains vital for safe navigation. Whether you’re a seasoned mariner or a curious enthusiast, understanding these symbols can deepen your appreciation for the art and science of seafaring.  Click here for more on day shapes and the regulations.   Like this blog?  Visit our Boaters Blog for more!
